Project Description

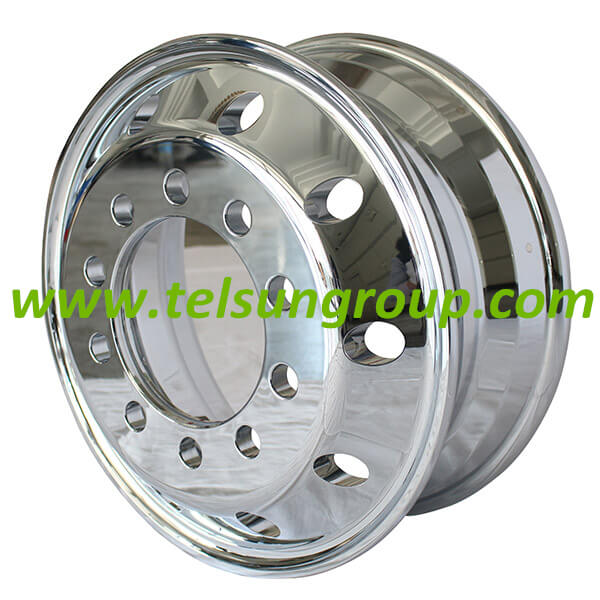

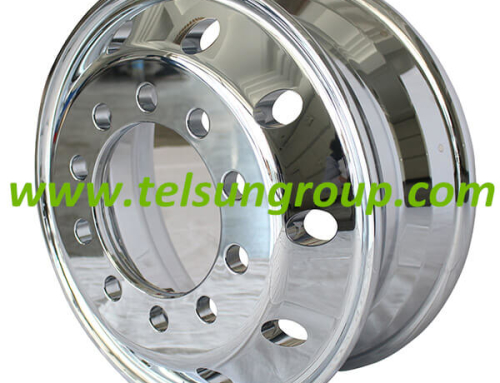

Telsun has the different types of forged alloy wheels: mirror-polished, machine-finished and Dura-Bright.

Wheel Size Max.load KG Offset(mm) Disc Thickness Stud Hole Dia (mm) Number of Stud Holes Centre Bore Dia (mm) P.C.D (mm) Mounting Type Dual Mount
17.5X6.00 2200 135 20.4 32.5 6 164 222.25 Stud YES
17.5X6.00 2200 135 20.4 26 10 176 225 Hub YES
17.5X6.00 2200 135 20.4 32.5 5 146 203.2 Stud YES
17.5X6.00 2200 135 20.4 29 5 146 23.2 Stud YES
17.5X6.00 2200 135 20.4 21.5 6 140 190 Stud YES
17.5X6.00 2200 135 20.4 21.5 6 161 205 Hub YES
17.5X6.75 2500 141 21.3 32.5 6 164 222.25 Stud YES
17.5X6.75 2500 141 21.3 26 10 176 225 Hub YES
17.5X6.75 2500 141 21.3 21.5 6 161 205 Hub YES
17.5X6.75 2500 141 21.3 26 6 202 245 Hub YES
17.5X6.75 2500 141 21.3 26 8 221 275 Hub YES
19.5X6.75 2500 142 22.1 32.5 6 164 222.25 Stud YES
19.5X6.75 2500 142 22.1 26 10 176 225 Hub YES
19.5X6.75 2500 142 22.1 26 6 202 245 Hub YES
19.5X6.75 2500 142 22.1 26 8 221 275 Hub YES
22.5X7.50 3350 161.5 22 32 10 281 335 Hub YES
22.5X7.50 3350 161.5 22 26 10 281 335 Hub YES
22.5X7.50 3350 161.5 22 26 8 221 275 Hub YES
22.5X7.50 3350 161.5 22 32 8 214 275 Stud YES
22.5X7.50 3350 161.5 22 26 10 220 285.75 Hub YES
22.5X8.25 3650 167 24.5 32 10 281 335 Hub YES
22.5X8.25 3650 167 24.5 26 10 281 335 Hub YES
22.5X8.25 3650 167 24.5 32 8 221 285 Stud YES
22.5X8.25 3650 167 24.5 26 10 220 285.75 Hub YES
22.5X8.25 3650 167 24.5 32 10 220 285.75 Stud YES
22.5X8.25 3650 167 24.5 32 8 214 275 Stud YES
22.5X8.25 3650 167 24.5 26 8 221 275 Hub YES
22.5X9.00 4535 176 24.5 32 10 281 335 Hub YES
22.5X9.00 4535 176 24.5 26 10 281 335 Hub YES
22.5X9.00 4535 176 24.5 26 10 220 285.75 Hub YES
22.5X9.00 4535 176 24.5 32 10 220 285.75 Stud YES
22.5X11.75 4500 0 23 26 10 281 335 Hub NO
22.5X11.75 4500 0 23 32 10 281 335 Hub NO
22.5X11.75 4500 0 23 26 8 221 275 Hub NO
22.5X11.75 4500 0 23 21.5 8 221 275 Hub NO
22.5X11.75 4500 0 23 26 10 220 285.75 Hub NO
22.5X11.75 4500 ET120 25.5 26 10 281 335 Hub NO
22.5X11.75 4500 ET120 25.5 32 10 281 335 Hub NO
22.5X11.75 4500 ET120 25.5 26 8 221 275 Hub NO
22.5X11.75 4500 ET120 25.5 21.5 8 221 275 Hub NO
22.5X11.75 4500 ET120 25.5 26 10 220 285.75 Hub NO
22.5X13.00 5300 0 29 26 10 281 335 Hub NO
22.5X13.00 5300 0 29 32 10 281 335 Hub NO

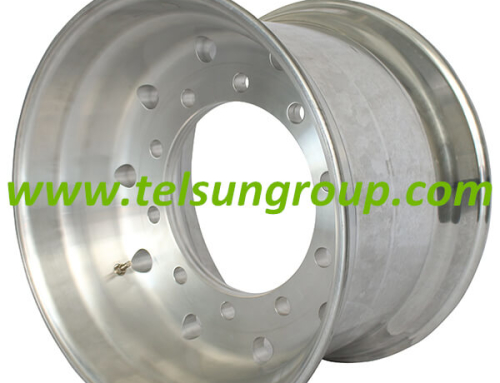

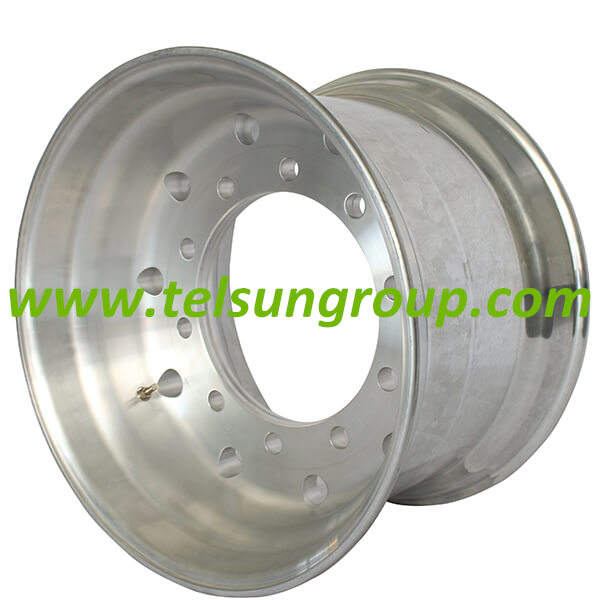

22.5X14.00 5800 0 31 26 10 281 335 Hub NO
22.5X14.00 5800 0 31 32 10 281 335 Hub NO
Ask for quote
